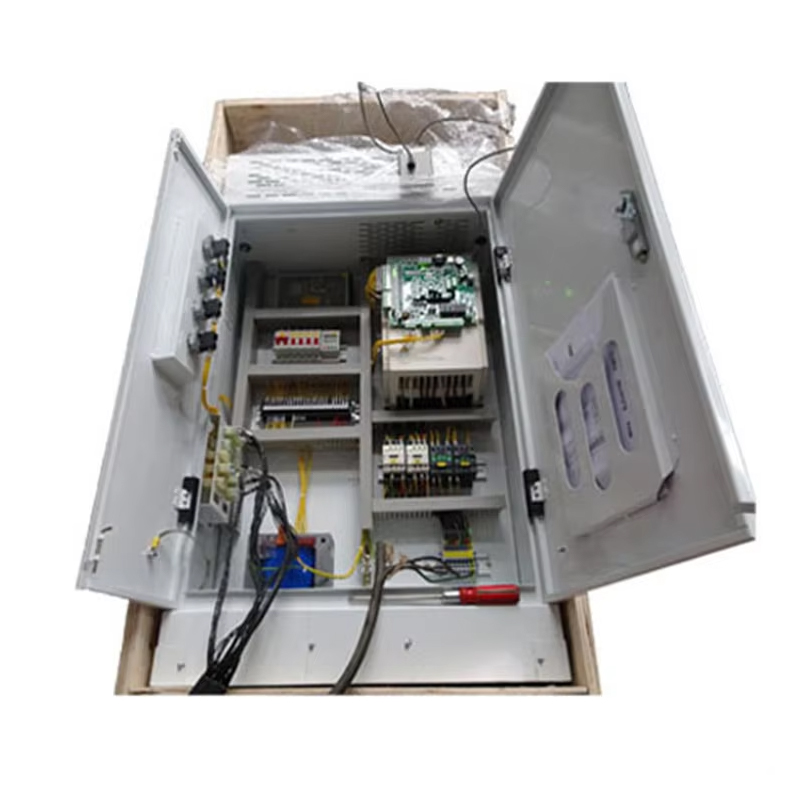

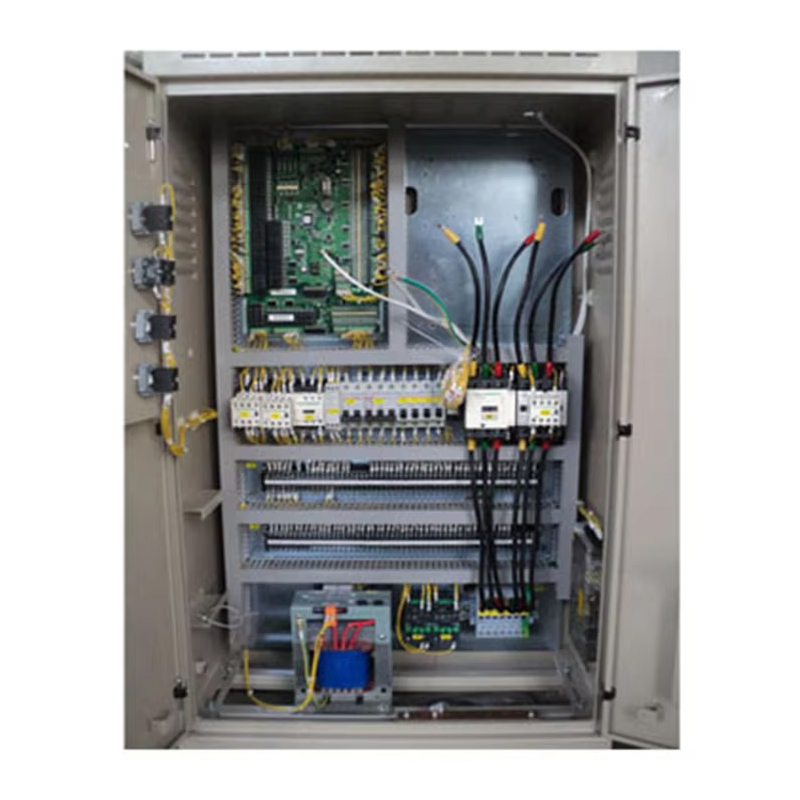

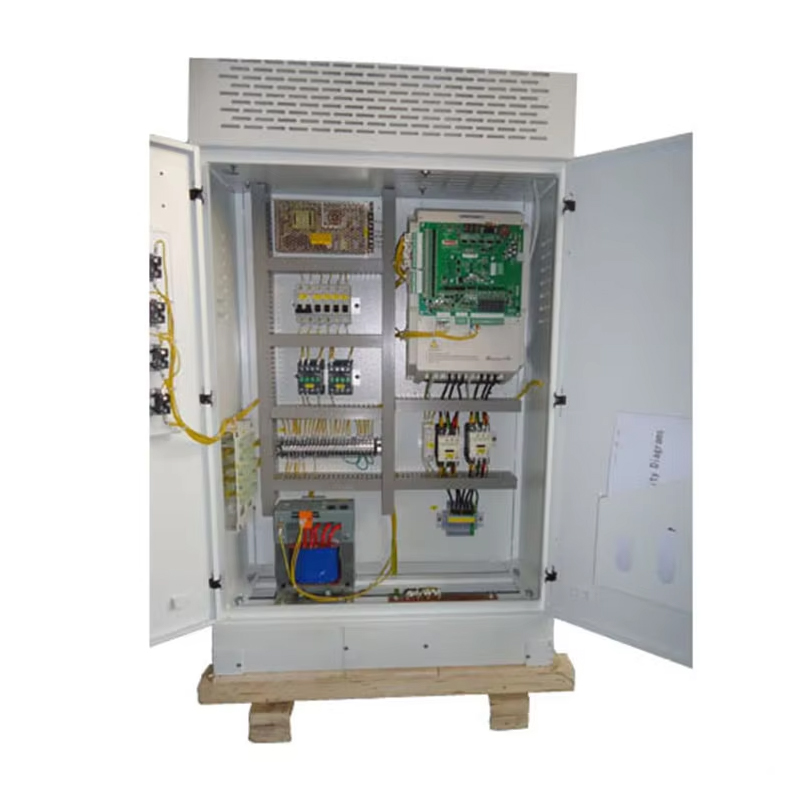

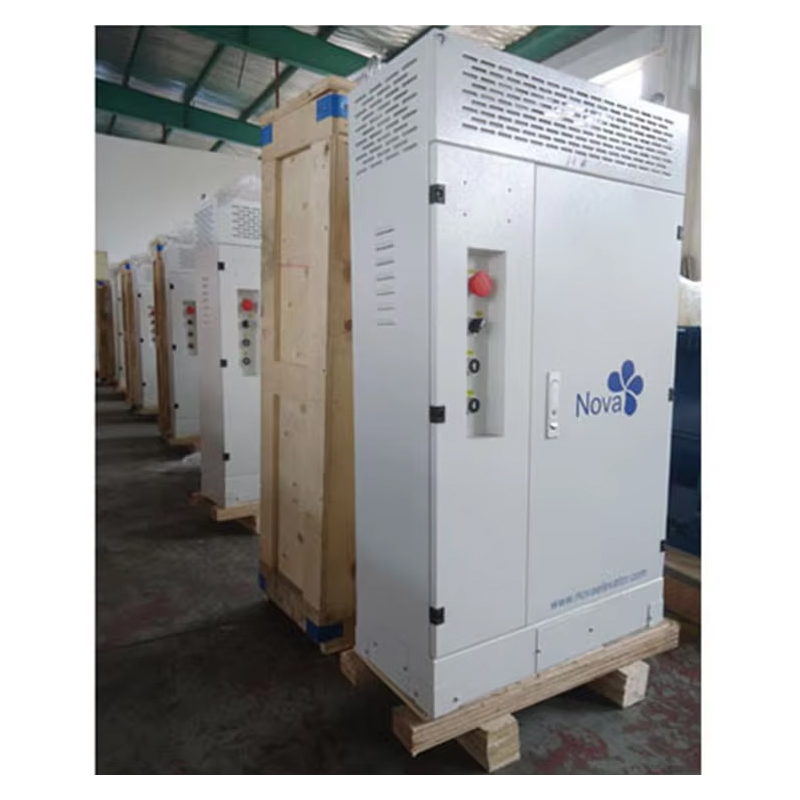

Consuetudo VTSP320 3000 Series Gradus Smart Elevator Leva Nice Controller
| Exemplar Code | Artus | Input Current (A) | Output Current (A) | Typical Motor (W) | Dimension | Dimension | Braking Unit | ||||||
| 10HP | 30HP | 10HP | 30HP | Altitudo (H) | Latitudo (W) | Profundum (D) | Max resistor(Ω) | Min resistor(Ω) | Power of braking resistor (W) | ||||
| W1-L-AJ-B-2002 | C | 9.2 | 11 | 5.2 | 9.6 | 1.1/2.2 | 347.0mm | 223.0mm | 143.0mm | 145.0/72.0 | 125.0/65.0 | 300/600 | inaedificata |
| W1-L-AJ-B-2003 | C | 13 | 17 | 7.5 | 14 | 1.5/3.7 | 347.0mm | 223.0mm | 143.0mm | 105/54.0 | 90.0/50.0 | 450/100 | |
| 220-NV-L-A/B-4007 | D | 17.9 | 20.5 | 10.3 | 18 | 22/4.0 | 347.0mm | 223.0mm | 173.5mm | 72.0/40.0 | 63.0/35.0 | 600/1200 | |
| 220-NV-L-A/B-4011 | D | 25.3 | 29 | 15.5 | 27 | 3.7/5.5 | 347.0mm | 223.0mm | 173.5mm | 43.0/29.0 | 37.0/25.0 | 1100/1600 | |
| 220-NV-L-A/B-4015 | D | 31.3 | 36 | 19 | 33 | 4.0/7.5 | 347.0mm | 223.0mm | 173.5mm | 40.0/26.0 | 35.0/22.0 | 1200/2500 | |
| 220-NV-L-A/B-4018 | E | 34.6 | 41 | 22.5 | 39 | 5.5/11.0 | 350.0mm | 210.0mm | 188.0mm | 29.0/14.5 | 25.0/13.0 | 1600/3500 | |
| 220-NV-L-A/B-4022 | E | 42.6 | 49 | 27.5 | 48 | 11.0/15.0 | 360.0mm | 210.0mm | 188.0mm | 18.0/13.0 | 16.0/12.5 | 3500/4500 | |
| 220-NV-L-A/B-4030 | E | 52.6 | 62 | 34.6 | 60 | 15.0/18.5 | 554.5mm | 289.6mm | 223.0mm | 13.0/12.5 | 13.0/12.0 | 4500/5500 | |
| Exemplar Code | Artus | Input Current (A) | Output Current (A) | Typical Motor(KW) | Dimension | Dimension | Braking Unit | ||||
| 30Ph | 30Ph | ||||||||||
| Altitudo (H) | Latitudo (W) | Profundum (D) | Max resistor(Ω) | Min resistor(Ω) | Power of braking resistor (W) | ||||||
| NV-L-A/B-4002 | C | 6.5 | 5.1 | 2.2 | 347.0mm | 223.0mm | 143.0mm | 290 | 230 | 600 | inaedificata |
| NV-L-A/B-403 | C | 10.5 | 9 | 3.7 | 347.0mm | 223.0mm | 143.0mm | 170 | 135 | 1100 | |
| NV-L-A/B-405 | C | 14.8 | 13 | 5.5 | 347.0mm | 223.0mm | 143.0mm | 115 | 90 | 1600 | |
| NV-L-A/B-4007 | D | 20.5 | 18 | 7.5 | 347.0mm | 223.0mm | 173.5mm | 85 | 65 | 2500 | |
| NV-L-A/B-4011 | D | 29 | 27 | 11 | 347.0mm | 223.0mm | 173.5mm | 55 | 43 | 3500 | |
| NV-L-A/B-4015 | D | 36 | 33 | 15 | 347.0mm | 223.0mm | 173.5mm | 43 | 35 | 4500 | |
| NV-L-A/B-4018 | E | 41 | 39 | 18.5 | 350.0mm | 210.0mm | 188.0mm | 34 | 25 | 5500 | |
| NV-L-A/B-4022 | E | 49.5 | 48 | 22 | 350.0mm | 210.0mm | 188.0mm | 24 | 22 | 6500 | |
| NV-L-A/B-4030 | E | 62 | 60 | 30 | 554.5mm | 289.6mm | 223.0mm | 20 | 16 | 9000 | |
| NV-L-A/B-4037 | F | 77 | 75 | 37 | 549.0mm | 385.0mm | 265.0mm | 16 | 13 | 11000 | Externum |
| NV-L-A/B-4045 | F | 93 | 91 | 45 | 549.0mm | 385.0mm | 265.0mm | 14 | 11 | 13500 | |
| Exemplar Code | Rated Power (kVA) | Rated Output Current (A) | Idoneum Motor Power (kW) | Exemplar Code | Rated Power (kVA) | Rated Output Current (A) | Idoneum Motor Power (kW) |
| 200V Inverter | 400V Inverter | ||||||
| 2S01P1 | 2.3 | 6 | 1.1 | 4T01P1 | 2.7 | 3.5 | 1.1 |
| 2S02P2 | 4.6 | 12 | 2.2 | 4T02P2 | 4.7 | 6.2 | 2.2 |
| 2S03P7 | 6.9 | 18 | 3.7 | 4T03P7 | 6.9 | 9 | 3.7 |
| 2T05P5 | 9.5 | 25 | 5.5 | 4T05P5 | 8.5 | 13 | 5.5 |
| 2T07P5 | 12.8 | 33 | 7.5 | 4T07P5 | 14 | 18 | 7.5 |
| 2T0011 | 17.9 | 47 | 11 | 4T0011 | 18 | 27 | 11 |
| 2T0015 | 23 | 60 | 15 | 4T0015 | 24 | 34 | 15 |
| 2T18P5 | 29 | 75 | 18.5 | 4T18P5 | 29 | 41 | 18.5 |
| 2T0022 | 32 | 80 | 22 | 4T0022 | 34 | 48 | 22 |
VITIN notam inquisitioni et evolutionis, fabricandae, et exportationis variarum escalatoris elevatoris et accessoriis elevatoris committitur. Duo segmenta negotiatorum habet, VITIN Accessories Societatis et VITIN Elevator Technologiae Societas.
Eodem tempore etiam facultatem gignendi habemus 10000 talentorum elevatoris ductoris cancellorum per annum sub notam nostram.
Post annos evolutionis, societates sub VITIN notae supra 800 vasa escalatoris et accessiones annuatim exportaverunt, venditiones in plus quam 50 terris et regionibus inter Europam, North et Meridionalem, Asiam Australem et Orientem Medium exportaverunt.
