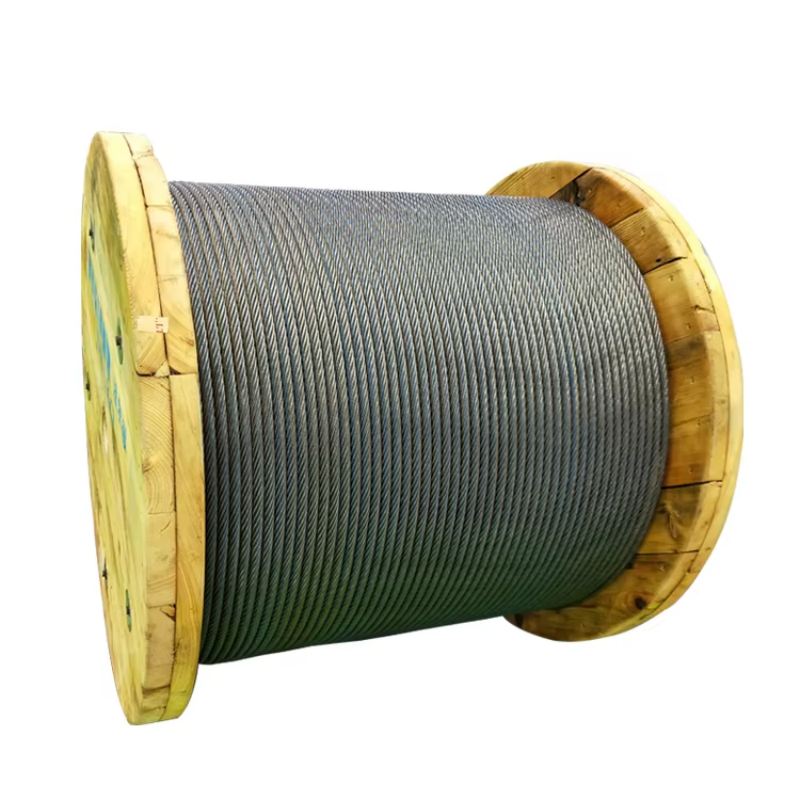

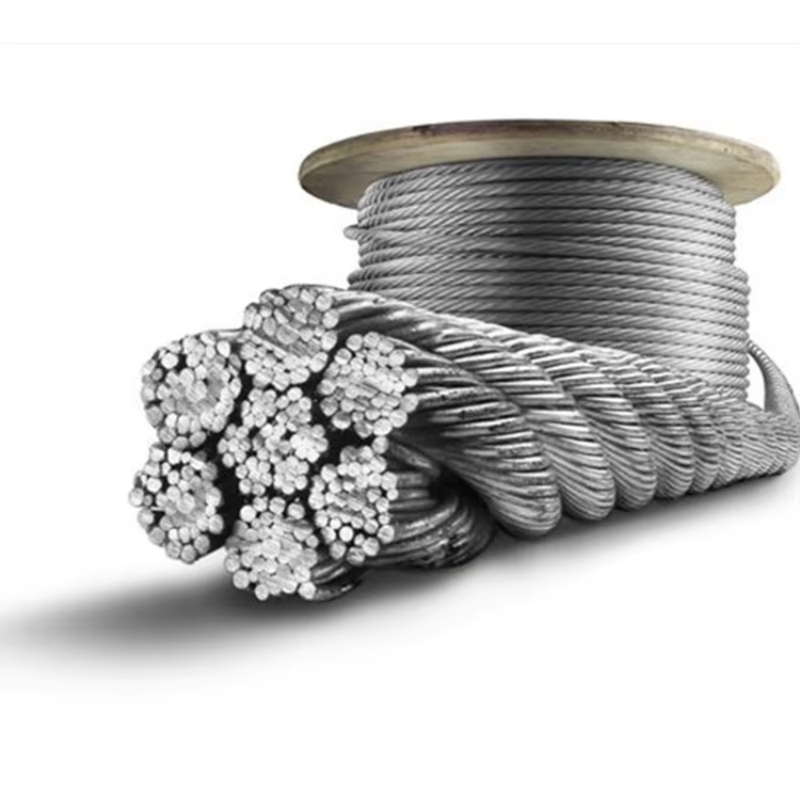

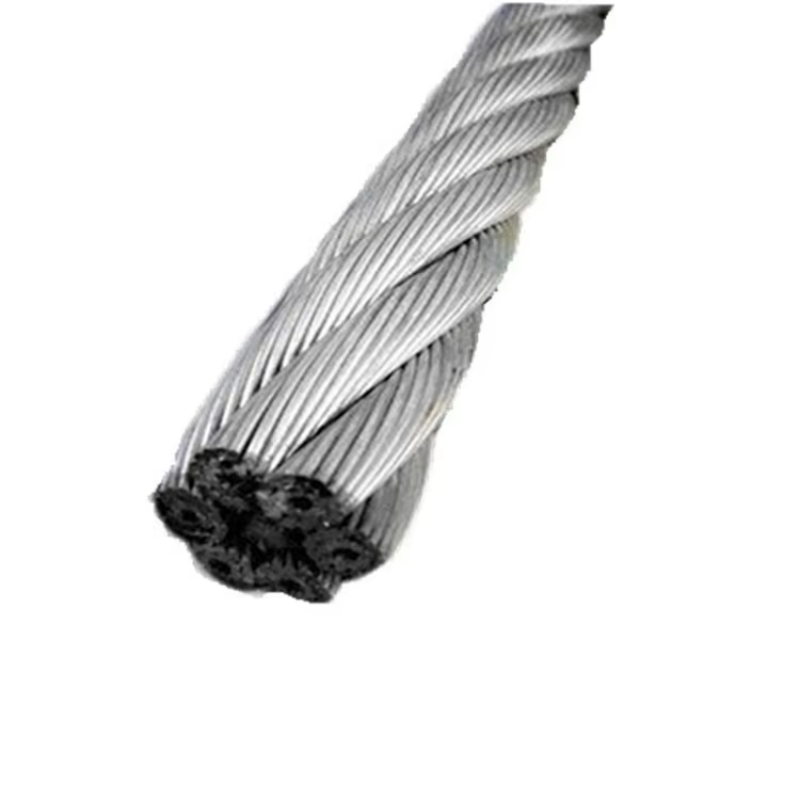

Consuetudo VTSP256 Elevator Steel Wire Funis velocitatis Gubernatoris
| Product Name | Elevator ferro filum funem |
| Materia | ss304, ss316, galvanized chalybe ect. |
| Diameter Range | 6-22mm |
| Genera cables | Funis filum chalybeum immaculatum, filum galvanized funem, filum filum obductis, speciale filum funem |
| Superficies | Splendida, iactata, galvanized, objectum. |
| Features | Steel cables intemerata superficiem levem habent, corrosio alta repugnant, vires defatigatio princeps, resistentia caloris egregii et sunt. liber a rimis lateralibus / longitudinalibus , foveis et notis etc |
| Nominal Funis Diameter | 6*19S PP | Minimum Breaking Lond | |||
| Dual tensile, Mpa | Unius tensile, Mpa | ||||
| 1370/1770 | 1570/1770 | 1570 | 1770 | ||
| mm | Kg/100m | kN | kN | kN | kN |
| 6 | 12.9 | 17.8 | 19.5 | 18.7 | 21 |
| 8 | 23 | 31.7 | 34.6 | 33.2 | 37.4 |
| Nominal Funis Diameter | Proxime Pondus | Minimum Breaking Lond | |||
| | | Dual tensile, Mpa | Unius tensile, Mpa | ||
| | | 1370/1770 | 1570/1770 | 1570 | 1770 |
| mm | Kg/100m | kN | kN | kN | kN |
| 8 | 21.8 | 28.1 | 30.8 | 29.4 | 33.2 |
| 9 | 27.5 | 35.6 | 38.9 | 37.3 | 42 |
| 10 | 34 | 44 | 48.1 | 46 | 51.9 |
| 11 | 41.1 | 53.2 | 58.1 | 55.7 | 62.8 |
| 12 | 49 | 63.3 | 69.2 | 66.2 | 74.7 |
| 13 | 57.5 | 74.3 | 81.2 | 77.7 | 87.6 |
| 14 | 66.6 | 86.1 | 94.2 | 90.2 | 102 |
| 15 | 76.5 | 98.9 | 108 | 104 | 117 |
| 16 | 87 | 113 | 123 | 118 | 133 |
| 18 | 110 | 142 | 156 | 149 | 168 |
| 19 | 123 | 159 | 173 | 166 | 187 |
| 20 | 136 | 176 | 192 | 184 | 207 |
| 22 | 165 | 213 | 233 | 223 | 251 |
| Nominal Funis Diameter | Proxime Pondus | Minimum Breaking Lond | ||||
| Dual tensile, Mpa | ||||||
| 1370/1770 | 1570/1770 | 1620/1770 | ||||
| IWRC | IWRF | IWRC | IWRF | IWRC | IWRF | |
| mm | Kg/100m | kN | kN | |||
| 8 | 26 | 25.9 | 35.8 | 35.2 | 38 | 37.4 |
| 9 | 33 | 32.8 | 45.3 | 44.5 | 48.2 | 47.3 |
| 10 | 40.7 | 40.5 | 55.9 | 55 | 59.5 | 58.5 |
| 11 | 49.2 | 49 | 67.6 | 66.5 | 79.1 | 70.7 |
| 12 | 58.6 | 58.3 | 80.5 | 79.1 | 85.6 | 84.2 |
| 13 | 68.8 | 68.4 | 94.5 | 92.9 | 100 | 98.8 |
| 14 | 79.8 | 79.4 | 110 | 108 | 117 | 115 |
| 15 | 91.6 | 91.1 | 126 | 124 | 134 | 132 |
| 16 | 104 | 104 | 143 | 141 | 152 | 150 |
| 18 | 132 | 131 | 181 | 178 | 193 | 189 |
| 19 | 147 | 146 | 202 | 198 | 215 | 211 |
| 20 | 163 | 162 | 224 | 220 | 238 | 234 |
| 22 | 197 | 196 | 271 | 266 | 283 | 283 |
